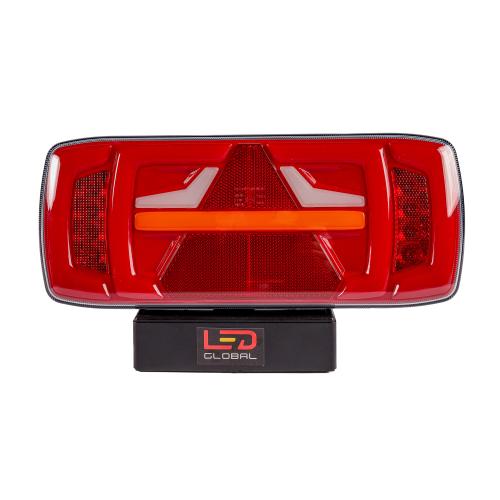

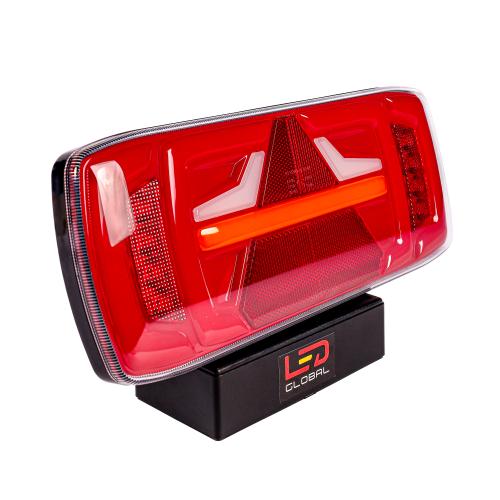

10-30V LED Combination Tail Light with Dynamic Indicator (RH)

10-30V LED Combination Tail Light with Dynamic Indicator (RH) - LG555

General Characteristics

• Application: LED Trailer Tail Light Combination
• Direction: Right hand Side
• Stop/Tail/DynamicIndicator/Fog/Reverse/Reflector/Triangle
• 10-30vApplication
• 50,000h / E Mark Certified / IP67
• ECE R10, R3, R6, R7, R23, R38, R91 Approved
• EMC - CISPR25 Class 4 (Radio Frequency Suppression)

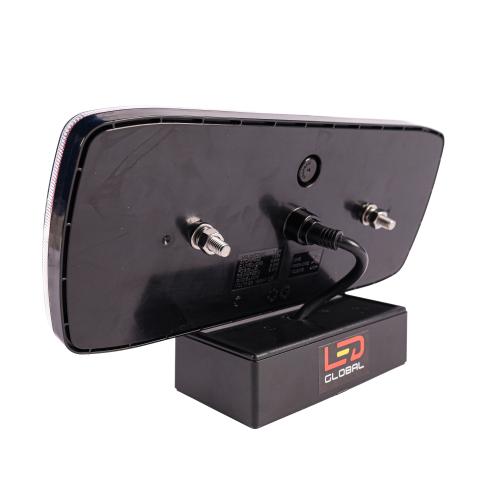

• Supplied with 150cm ofopen-endcable

Technical Light Properties

• Light Colour: Amber/ Red/ White
• Colour temperature: 6000K On Reverse

Electrical Characteristics

• High intensity CREE XTE LEDs
• Suitable for 10-30V DC
• Vibration Test to 15G

Dimensions

• Lamp width: 316 mm
• Lamp height: 130 mm
• Lamp thickness: 31 mm
