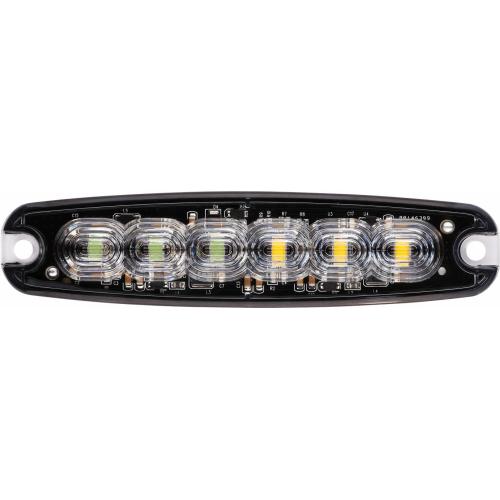

6 LED Slim Combination Tail Light

6 LED Slim Combination Tail Light - LG526

Main Properties

• DC 12-24 Volts
• 6 LED x 1.5 Watt
• Stop, Tail & Indicator
• Bolt on or 3M Self Adhesive Strip
• IP67 Ingress Protection
• Extreme Temperature Reliability
• ECE R148, ECE R10
• Rear Stop/Tail = R148 R1-S1 Red LED Clear Lens
• Rear Indicator = R148 2a Amber LED Clear Lens

• 131mm x 31mm 6.6mm

Wiring Diagram

• Black = Negative
• Red = Stop Function
• White = Tail Function
• Yellow = Direction Indicator Light

Choosing LED Global for your vehicles Tail Lighting systems is an easy one if you demand a long service life with sturdy design and easy installing on your vehicle for all kinds of rear light requirements.

The quality & stamina of our LED Rear Lamps results not only in reduced energy consumption, large financial savings but also most importantly reduced down times due to bulb change.
