12/24V LED FLUSH MARKER LIGHT C/W 2 GASKETS (RED)

GENERAL CHARACTERISTICS

• Surface Mount Marker Light (Bull Bar)
• Housing: H/D Plastic
• Application: on road as well as off-road
• 6 pcs x 0.1 watt high intensity OSRAM LEDs
• Lamp finish: PMMA
• Lifespan: 30,000 hours +
• Water tightness: Splashproof (IP67)
• Pre Wired
• ECE Approved / emark Certified
• EMC - Radio Supression
• Supplied with Bull Bar Gaskets

TECHNICAL LIGHT PROPERTIES

• Light color: Amber
• Color temperature: 6000K.

ELECTRICAL CHARACTERISTICS

• Nominal lamp power: 0.6 Watt
• 4 pcs 1.5 watt high intensity OSRAM LEDs
• Suitable for 12-24V DC
• 21.4 lumens

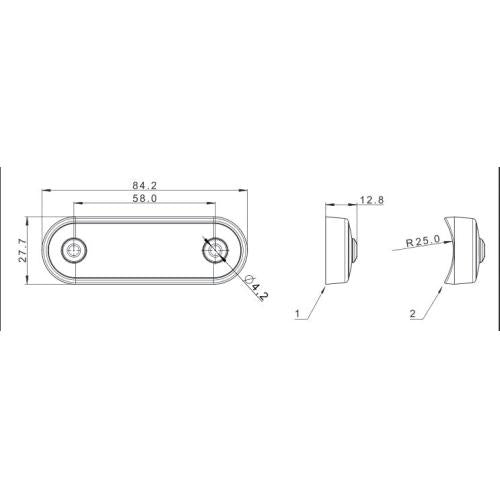

DIMENSIONS IN MM.

• Lamp width: 84.2 mm
• Lamp height: 27.7 mm
• Lamp thickness: 12.8 mm
• Bolt Hole Distance: 58 mm

Sidemarker lightsare types oflightthat are attached to the front and rear sides of motorized vehicles and trailers. Their function is to add some morelightsalong with the headlights for the drivers to see and drive safely.

Our full range ofLED Marker Lightsare manufactured to thehighest qualityin Europe. By using high classOsram Diodes, the Marker outputs excellent light and has a huge lifetime. The Marker Light range is suitable for a wide range of Vehicles & machinery such asTrucks,Trailers,Agricultural Equipment& Construction Vehicles.
