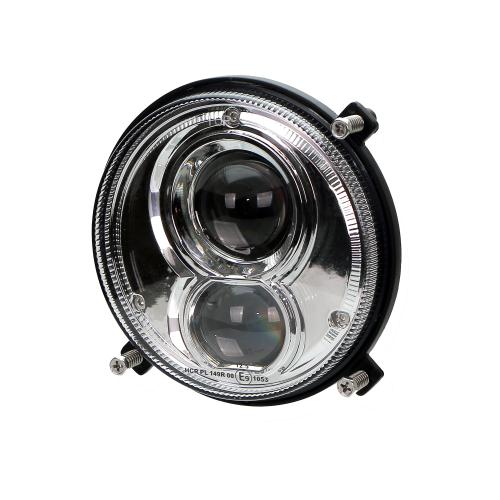

90 Watt LED Round High & Low Beam Headlight

90 Watt LED Round High & Low Beam Headlight, 5600 Lumen - LG824

General Characteristics

• Housing: Diecast AluminIum

• Application: Indoor as well as off-road
• 60w High Beam / 5600 Lumen
• 30w Low Beam / 2400 Lumen
• 9/32V
• 50,000h
• IP68
• ECE R10, ECE R112, Approved
• EMC - CISPR25 Class 4 (Radio Frequency Suppression)
• Supplied With H4 Plug & Play Connection
• Dimensions 140 x 140 x 79mm

Technical Light Properties

• Light color: Cold white

• Ireland / UK Headlight
• Color temperature: 6000K

Electrical Characteristics

• Nominal lamp power: 60 Watt
• 60W high intensity CREE XTE LEDs
• Suitable for 9-32V DC
• 5,600 lumens
• Lux Reading: 50Mtr @ 12Lux
• Lux Reading: 186Mtr @ 1Lux
• Vibration Test to 15G

Dimensions

• Lamp width: 140 mm
• Lamp height: 140 mm
• Lamp thickness: 79 mm

*O.E.M Ref:
Fendt: G716900020102,Massey Ferguson: 4278938M92, 4278938M91,3788221M91, 3532565M91,3305625M91,LHT 4278939M92, 4278939M91

*Compatible with the following:

Massey Ferguson

5400-Serie: 5425, 5435, 5445, 5455, 5460, 5465, 5470, 5475, 5480

6400-Serie: 6445, 6455, 6460, 6465, 6470, 6475, 6480, 6485, 6490, 6495, 6497, 6499

7400-Serie: 7465, 7475, 7480, 7485, 7490, 7495, 7497, 7499

8400-Serie: 8450/8460, 8470/8480.

Fendt

Favorit711,Favorit712,Favorit714,Favorit716,Favorit818,Favorit916,Favorit918,Favorit920,Favorit924,Favorit926,

Fendt 411, Fendt 412, Fendt 413, Fendt414, Fendt 415, Fendt 711, Fendt 712, Fendt 714,Fendt 716, Fendt 718, Fendt 815,

Fendt 817, Fendt 818, Fendt 820,Fendt 206 S (Typ326),Fendt 206 V+F (Typ210), Fendt 207 S (Typ327), Fendt 207 V+F (Typ212),

Fendt 207 V+F (Typ260),Fendt 208 P (Typ221), Fendt 208 S (Typ328), Fendt 208 V+F (Typ213), Fendt 208 V+F (Typ261),

Fendt 209 P (Typ222), Fendt 209 P (Typ272), Fendt 209 S (Typ329), Fendt 209 V+F (Typ214),Fendt 209 V+F (Typ262), Fendt 210 P (Typ273),

Fendt 210 V+F (Typ263), Fendt 211 P (Typ274), Fendt 211 V+F (Typ264)Farmer 409, Farmer 410, Farmer 411, Farmer 412,Farmer 240 S (Typ294),

Farmer 250 S (Typ295),Farmer 250 V (Typ205),Farmer 260 P (Typ246), Farmer 260 S (Typ296),Farmer 260 V (Typ206),

Farmer 270 P (Typ247),Farmer 270 V (Typ207)Farmer 275 V

John Deere

1030,1040,1130,1140,1630,1640,1750, 1830, 1950, 2030,2040,2040S, 2130,2140

*Original Equipment names, series numbers & images are quoted and shown for reference purposes only and are not intended to infer that our replacement parts are used as original equipment
