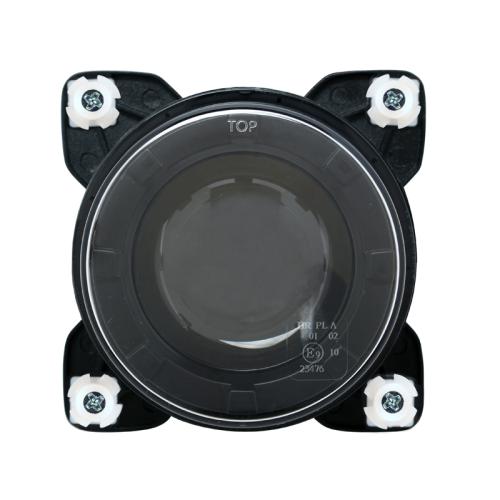

35 Watt LED High Beam Headlight

35W LED High Beam Headlight with Position, 3500 Lumen - LG822

General Characteristics

• Housing: Diecast Aluminium
• High Beam = 35 Watt
• DRL = 1.6 Watt
• 9/32V
• 50,000h
• IP68
• ECE R10, ECE R112, ECE R149 ECE R7 Approved
• EMC - CISPR25 Class 4 (Radio Frequency Suppression)
• Supplied With 2 Core Cable
• Dimensions 102 x 102 x 90mm

Technical Light Properties

• Light colour: Cold white

• Ireland / UK Headlight
• Colour temperature: 6000K

Electrical Characteristics

• Nominal lamp power: 35 Watt
• 35W high intensity CREE XTE LEDs

• Suitable for 9-32V DC
• 3500 lumens

• Lux Reading: 50Mtr @ 12Lux
• Lux Reading: 186Mtr @ 1Lux
• Vibration Test to 15G

Dimensions

• Lamp width: 102 mm
• Lamp height: 102 mm
• Lamp thickness: 90 mm

*O.E.M Ref:

4352924M3,4352924M2, B69383 , 0011064011

*Compatible with the following:

Claas

Celtis,Nectis, Elios,Axos, Atos, Arion and Axion

Massey Ferguson

5608 , 5609 , 5610 , 5611 , 5612 , 5613 , 5709 S DYNA 4 , 5709 S DYNA 6 , 5709SL , 5710 S DYNA 4 , 5710 S DYNA 6 ,

5710SL , 5711 S DYNA 4 , 5711 S DYNA 6 , 5711SL , 5712 S DYNA 4 , 5712 S DYNA 6 , 5712SL , 5713 S DYNA 4 , 5713 S DYNA 6 ,

5713SL , 6612 DYNA 4 , 6613 DYNA 4 , 6613 DYNA 6 , 6614 DYNA 6 , 6615 DYNA 4 , 6615 DYNA 6 , 6615 DYNA VT ,

6616 DYNA 6 , 6616 DYNA VT , 6712 S DYNA 4 , 6713 S DYNA 4 , 6713 S DYNA 6 , 6713 S DYNA VT , 6714 S DYNA 4 ,

6714 S DYNA 6 , 6714 S DYNA VT , 6715 S DYNA 6 , 6715 S DYNA VT , 6716 S DYNA 6 , 6716 S DYNA VT , 6718 S DYNA 6 ,

6718 S DYNA VT , 7614 DYNA 4 , 7615 DYNA 4 , 7615 DYNA 6 , 7615 DYNA VT/DYNA STEP , 7616 DYNA 6 , 7616 DYNA VT/DYNA STEP ,

7618 DYNA 6 , 7618 DYNA VT/DYNA STEP , 7619 DYNA 6 , 7619 DYNA VT , 7620 DYNA 6 , 7620 DYNA VT , 7622 DYNA 6 ,

7622 DYNA VT , 7624 DYNA 6 , 7624 DYNA VT , 7626 DYNA 6 , 7714 DYNA 4 , 7714 S DYNA 4 , 7715 DYNA 4 , 7715 DYNA 6 ,

7715 DYNA VT , 7715 S DYNA 4 , 7715 S DYNA 6 , 7715 S DYNA VT , 7716 DYNA 6 , 7716 DYNA VT , 7716 S DYNA 6 , 7716 S DYNA VT ,

7718 DYNA 6 , 7718 DYNA VT , 7718 S DYNA 6 , 7718 S DYNA VT , 7719 DYNA 6 , 7719 DYNA VT , 7719 S DYNA VT , 7720 DYNA VT ,

7720 S DYNA VT , 7722 DYNA VT , 7722 S DYNA VT , 7724 DYNA VT , 7724 S DYNA VT , 7726 DYNA VT , 7726 S DYNA VT , 8650 , 8660 ,

8670 , 8680 , 8690 (8600 Series) , 8727 , 8727 S , 8730 , 8730 S , 8732 , 8732 S , 8737 , 8737 S , 8740 , 8740 S

Fendt - Fendt 922 (Typ919) , Fendt 924 (Typ922) , Fendt 924 (Typ941) , Fendt 927 (Typ925) , Fendt 927 (Typ942) , Fendt 930 (Typ928)

Fendt 930 (Typ943) , Fendt 933 (Typ931),Fendt 933 (Typ944) , Fendt 936 (Typ934) , Fendt 936 (Typ945) , Fendt 939 (Typ946)

Fendt 819 (Typ832) , Fendt 822 (Typ833) , Fendt 824 (Typ834) , Fendt 826 (Typ835) , Fendt 828 (Typ836)

*Original Equipment names, series numbers & images are quoted and shown for reference purposes only and are not intended to infer that our replacement parts are used as original equipment
