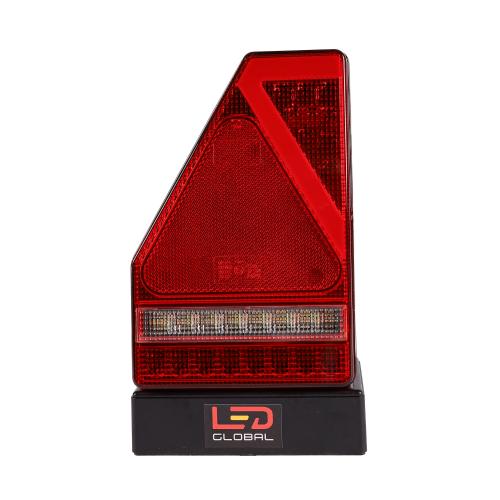

9-33V LED Triangular Combination Tail Light with Built In Smart Resistor (LH)

9-33V LED Triangular Combination Tail Light with Built In Smart Resistor (LH) - LG570

General Characteristics

• Application: LED Trailer Tail Light Combination
• Direction: Left Hand Side
• 45 LED's
• Stop/Tail/Indicator/Fog/Reverse/Reflector/Triangle
• 9-33vApplication
• 50,000h / E Mark Certified / IP67
• ECE R10, R3, R6, R7, R23, R38, R91 Approved
• EMC - CISPR25 Class 4 (Radio Frequency Suppression)
• Built in Smart Load Resistance on Indicators
• Supplied with socket & 30cm of cable

Technical Light Properties

• Light Colour: Amber/ Red/ White
• Colour temperature: 6000K On Reverse

Electrical Characteristics

• High intensity CREE XTE LEDs
• Suitable for 9-33V DC
• Vibration Test to 15G

Dimensions

• Lamp width: 218 mm
• Lamp height: 145 mm
• Lamp thickness: 35 mm

Technical Wiring Diagram

• White is Earth
• Grey is Tail
• Blue is Brake
• Brown is Fog
• Yellow/Green is Indicator
• Black is Reverse
