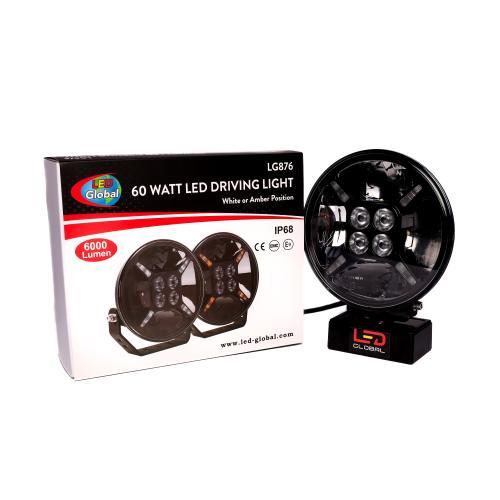

60 Watt 7 LED Driving Light with Dual Colour Position Light
60 Watt 7 LED Driving Light with Dual Colour Position Light
Couldn't load pickup availability
Product Code: LG876
The 7 " Driving Light has four strong LEDs as position lights and allows you to choose between Xenon White or Amber Colour.
It measures 1 lux brightness at 406 meters & protection against harsh climates with IP69K classification
E-markings (ECE R112 / R10 / R7), electronic heat management for optimal LED performance and life span, heat sink in aluminium, bracket in stainless steel.
The light has a combined light pattern, meaning that it both scatters light in a wide area close to the vehicle, but also focuses light far away. This beam pattern is ideal if you want a lot of light near the vehicle for the smaller roads but still have the length to light up the road far ahead.
Specifications:
- With position light, yellow-orange or xenon white (connect the colour you want)
- Combo beam pattern
- E-marked ECE R112 (Ref. 37,5), R10 / R7 (white position light)
- Range: 812 m (0,25 lux), 406 m (1 lux)
- EMC Protected Class 5
- 6000 Lumen (raw), 4800 Lumen (actual)
- Cold white light (5700K)
- TIR (Total Inner Reflection)
- ETM (Electronic Thermal Management)
- Side reflective optical system
- Pressure equalization membrane
- Die Cast Aluminium Alloy Housing
- Adjustable bracket in stainless steel
Technical data:
- 60W (4 x 10W LED + 4 x 5W LED)
- IP69K (water and dust proof)
- DT connector 4 pin supplied
- Voltage 9-36 V
- Main light load: 4A at 12V and 2A at 24V
- Position light load: 0,9A
Dimensions & weight:
- Width: 180 mm
- Height: 180 mm (192 mm incl bracket)
- Depth: 68 mm
- Cable length: 42 cm
- Weight: 1,15 kg
